d&b audiotechnik

Y7P Loudspeaker

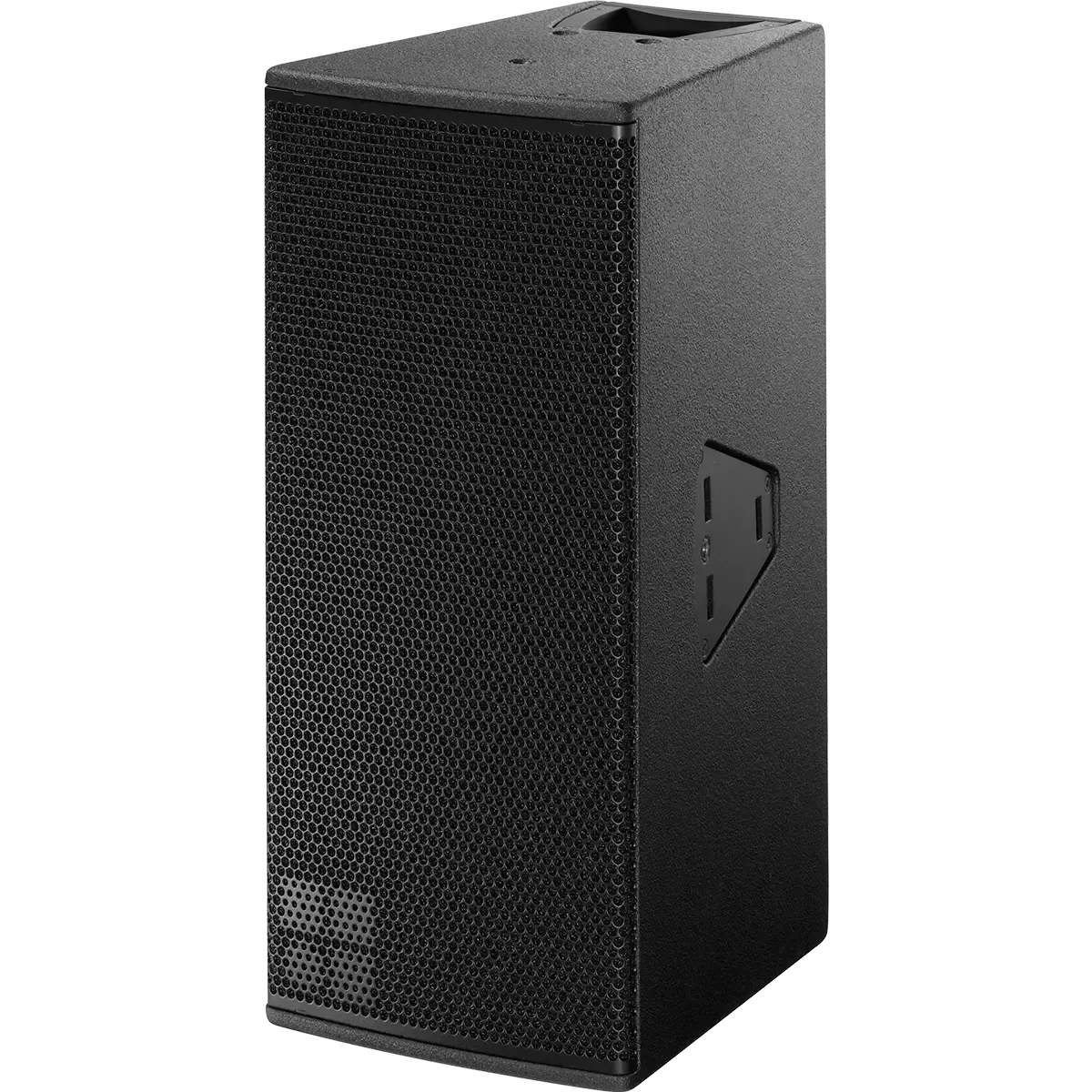

The Y7P loudspeaker is a compact, passive two-way system featuring dual 8-inch drivers in a dipole layout, complemented by a 1.4-inch compression driver mounted on a rotatable constant directivity horn. Engineered for precise dispersion control, the Y7P delivers 75 degrees of horizontal coverage maintained down to 500 hertz, along with a fixed 40-degree vertical pattern. The horn can be rotated 90 degrees to accommodate horizontal placement. Advanced bass-reflex porting and refined horn geometry enable full-range frequency response with extended low-frequency performance. Constructed from marine-grade plywood, the Y7P is coated with durable Polyurea Cabinet Protection and shielded by a robust metal grille with acoustically transparent backing. Designed for versatile deployment, it supports both standalone operation and integration with other Y-Series models in flown or ground-stacked configurations. The enclosure includes integrated handles and multiple M10 threaded inserts to support a wide range of d&b mounting solutions, including compatibility with 8mm load pins.

High performance 2-way passive point source loudspeaker

  • Components 2 x 8″/1.4″
  • Dispersion 75° x 40°
  • SPLmax 137 dB
  • Weight 18 kg / 40 lb
Enquire now
Professional Point Source Loudspeaker for Versatile Installation and Performance Applications

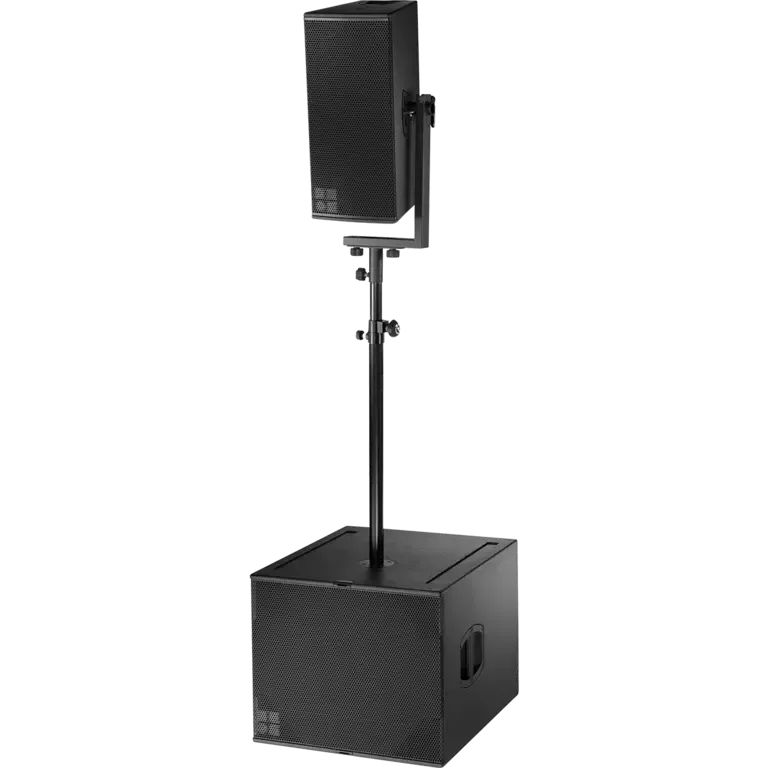

The Y7P loudspeaker from d&b audiotechnik is a passive, point source cabinet designed to deliver high-performance audio reproduction across a range of professional sound reinforcement environments. Featuring a compact, two-way design, the Y7P incorporates two 8-inch drivers in a dipole configuration alongside a 1.4-inch compression driver mounted on a rotatable constant directivity horn. This configuration supports precise dispersion control, enabling consistent sound coverage in both fixed installations and mobile applications. The Y7P loudspeaker is particularly effective as a full-range standalone solution or as part of a wider system when used with other components from the Y-Series, either ground stacked or flown. With controlled 75-degree horizontal and 40-degree vertical dispersion, it ensures accurate sound projection even in acoustically demanding spaces. The cabinet is constructed from marine-grade plywood and finished with Polyurea Cabinet Protection, offering robust durability and weather resistance for both indoor and outdoor use. Suitable for live performance venues, corporate events, theatres, and touring productions, the Y7P loudspeaker combines flexibility with reliable output. Integrated rigging options and M10 mounting points expand deployment possibilities, making the Y7P loudspeaker a trusted choice for system designers and integrators seeking consistent, professional-grade audio performance.

Controlled Dispersion Pattern
The Y7P loudspeaker delivers a 75-degree horizontal and 40-degree vertical dispersion pattern, ensuring even sound coverage and intelligibility across the audience area.
Rotatable Horn for Flexible Orientation
Its rotatable horn allows the Y7P loudspeaker to be used in either vertical or horizontal orientation, enabling adaptable system configuration based on venue layout.
Durable Weather-Resistant Enclosure
Constructed with marine plywood and finished with Polyurea Cabinet Protection, the Y7P loudspeaker is suitable for use in both indoor and outdoor environments.

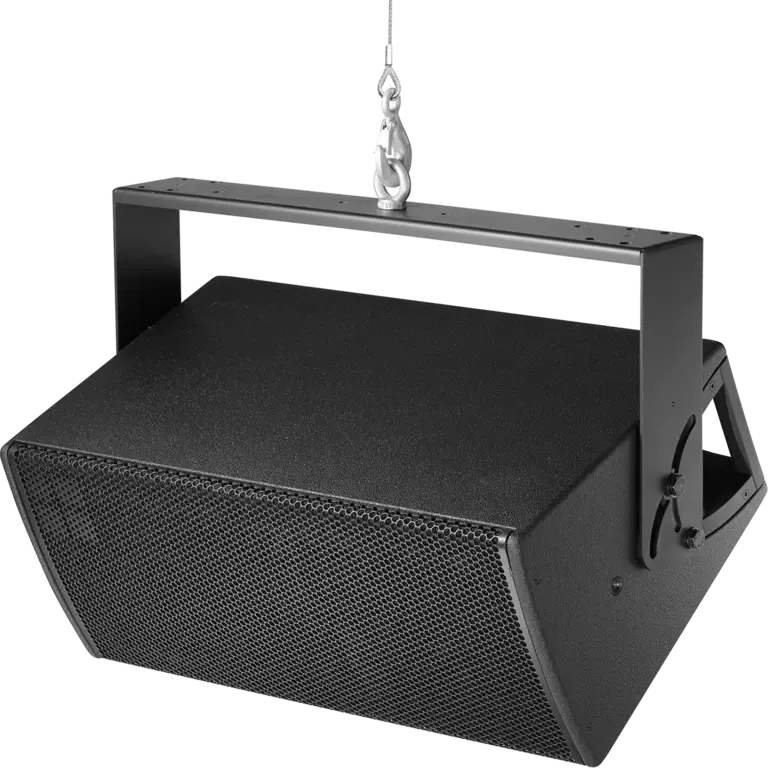

Integrated Rigging and Mounting Options
Equipped with M10 threaded inserts and load pin sockets, the Y7P loudspeaker supports a wide range of mounting hardware for versatile installation and touring applications.
