d&b audiotechnik

Y10P Loudspeaker

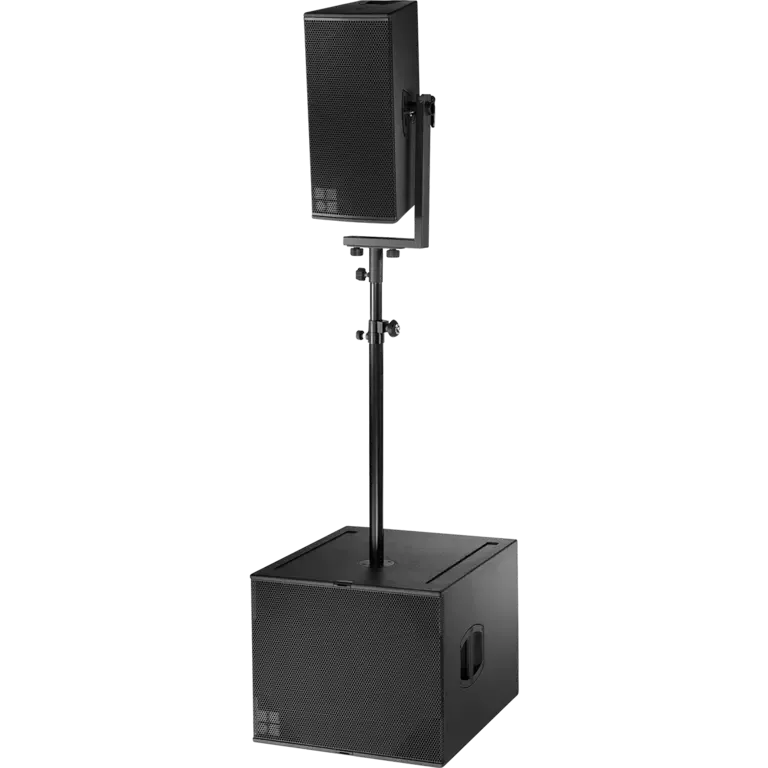

The Y10P loudspeaker is a compact, passive, two-way point source solution featuring dual 8-inch drivers configured in a dipole layout and a 1.4-inch compression driver mounted on a rotatable constant directivity horn. Engineered for precise audio performance, the Y10P delivers extended low-frequency output and full bandwidth capability through its advanced bass-reflex port design and optimised horn geometry. It offers 110 degrees of horizontal dispersion controlled down to 500 Hz, with a vertical coverage of 40 degrees. The horn can be rotated 90 degrees for horizontal installation, making the Y10P suitable for flexible configurations, whether deployed as a standalone full-range speaker or integrated within Y-Series systems in flown or ground-stacked setups. Constructed from durable marine-grade plywood, the cabinet is coated with a protective polyurea finish. A robust metal grille and acoustically transparent foam safeguard the front, while integrated handles and M10 rigging points facilitate versatile mounting and installation.

High performance 2-way passive point source loudspeaker

  • Components 2 x 8″/1.4″
  • Dispersion 110° x 40°
  • SPLmax 136 dB
  • Weight 18 kg / 40 lb
Enquire now
High-Performance Point Source Loudspeaker for Flexible Professional Sound Reinforcement





The Y10P loudspeaker from d&b audiotechnik is a passive, two-way point source cabinet designed to deliver precise, high-quality audio in a wide range of professional sound reinforcement applications. Engineered for both standalone use and integration within the Y-Series, the Y10P is ideally suited to theatres, houses of worship, live music venues, corporate events, and distributed audio systems requiring consistent directivity and extended frequency response. Its compact size and controlled dispersion characteristics allow for accurate sound coverage in environments where clarity, intelligibility, and system scalability are essential. The Y10P combines two 8-inch drivers in a dipole configuration with a 1.4-inch compression driver mounted on a rotatable constant directivity horn. This configuration enables consistent 110-degree horizontal dispersion down to 500 Hz and 40-degree vertical coverage, supporting a wide variety of installation orientations. Constructed from robust marine plywood and finished with a polyurea protective coating, the Y10P is designed for durability in both mobile and fixed applications. Integrated rigging points and ergonomic handles ensure flexible deployment options, whether ground stacked or flown. The Y10P loudspeaker exemplifies the d&b approach to system coherence, offering an optimised solution for delivering high-performance sound with precision and reliability in demanding professional environments.

Controlled Dispersion with Rotatable Horn
The Y10P provides 110-degree horizontal directivity controlled down to 500 Hz, with a rotatable horn for flexible orientation. This ensures accurate sound coverage in both vertical and horizontal deployments.
Advanced Dipole Configuration
Equipped with two 8-inch drivers in a dipole arrangement, the Y10P achieves enhanced low-frequency performance and consistent pattern control. This design supports clear audio reproduction across the full bandwidth.
Durable Construction for Professional Use
The enclosure is built from marine-grade plywood and finished with a weather-resistant polyurea coating. This offers long-term resilience for both touring and installed sound applications.
Flexible Mounting and Integration Options
Integrated M10 rigging points and additional sockets support various mounting methods. These features simplify integration into larger Y-Series systems or standalone configurations.
