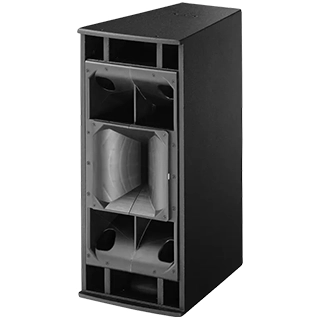

  • vi 7p loudspeaker back

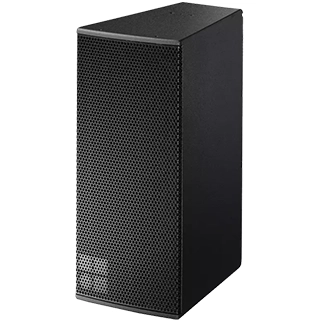

  • vi 7p loudspeaker front

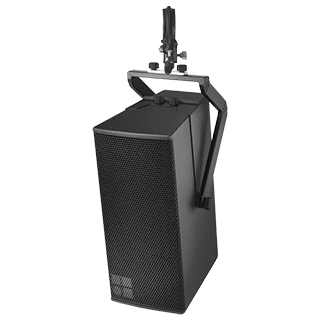

  • vi 7p loudspeaker front vertical
  • vi 7p loudspeaker hanging
  • vi 7p loudspeaker back
  • vi 7p loudspeaker front
d&b audiotechnik

Vi7P Loudspeaker

The Vi7P loudspeaker is a high-performance, passive 3-way point source system, specifically designed for fixed installations. It incorporates two 10″ low-frequency drivers in a dipole layout, supporting a central 8″ horn-loaded midrange driver and a 1.4″ compression high-frequency driver. These components are mounted on a rotatable constant directivity horn.

The midrange horn, positioned at the centre of the cabinet, is engineered for enhanced vocal clarity, offering outstanding sensitivity across speech and vocal-focused content. Low-frequency output is extended thanks to a refined bass-reflex system with optimised venting, enabling wide-band audio reproduction.

High-output 3-way loudspeaker optimised for fixed installations
  • Type: 3-way point source loudspeaker designed for installation use
  • Drivers: 2 × 10″ LF, 1 × 8″ MF, 1 × 1.4″ HF compression driver
  • Dispersion: 75° horizontal × 40° vertical coverage
  • Maximum SPL: Up to 140 dB peak output
  • Weight: 33 kg (75 lb)
Enquire now
Vi7P Loudspeaker – Installation-Optimised 3Way Passive Solution





The Vi7P loudspeaker is engineered to meet the demands of fixed installations that require precision audio performance, flexible deployment, and durable construction. Its 3-way passive design and advanced driver configuration provide clarity, control, and consistency across a broad frequency range. Whether used as a stand-alone solution or within a full system setup, the Vi7P offers exceptional functionality and adaptability for professional environments.

The Vi7P loudspeaker delivers a fixed horizontal dispersion of 75° and a vertical coverage of 40°, with the horn’s 90° rotation feature allowing the cabinet to be mounted horizontally as needed. This flexibility makes the system suitable for a wide range of configurations whether deployed individually as a full-range unit or integrated with other d&b V-Series elements in flown or ground-stacked setups.

Constructed from durable marine-grade plywood, the Vi7P loudspeaker features a robust protective grille and a hard-wearing paint finish. Additional versions are available in Special Colour (SC) for custom appearance or as a Weather Resistant (WR) model, which carries an IP55 rating for reliable performance in varying environmental conditions.

Advanced 3-Way Driver Configuration
The Vi7P loudspeaker incorporates two 10" LF drivers, an 8" horn-loaded MF driver, and a 1.4" HF compression driver. This integrated design ensures accurate vocal reproduction and balanced sound across the spectrum.
Symmetrical Dispersion Pattern
All transducers are centrally aligned to produce a consistent and symmetrical dispersion. This layout improves directivity and coverage, particularly in acoustically challenging spaces.
Rotatable Horn for Flexible Mounting
Featuring a rotatable constant directivity horn, the Vi7P loudspeaker supports 75° x 40° coverage with horizontal or vertical orientation. This allows for precise alignment in varied installation scenarios.
Durable Construction with Weather Resistant Option
Built from marine-grade plywood with a reinforced grille and protective coating, the Vi7P is designed for long-term use. A Weather Resistant (WR) version with IP55 rating is also available for outdoor or variable conditions.
Enquire nowDownload Datasheet
