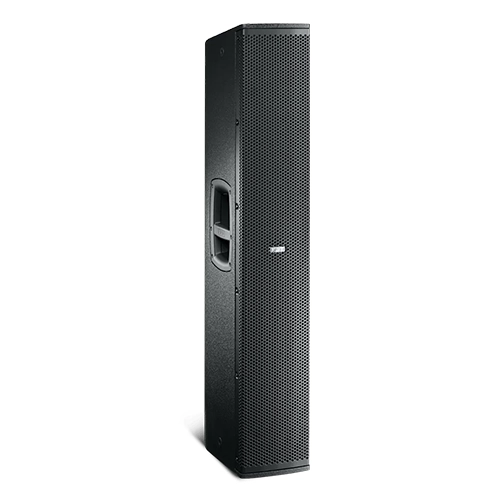

VERTUS CLA 406.2A

The VERTUS CLA 406.2A is a bi-amplified, active column line array designed for professional sound reinforcement. It features four 165mm custom-designed woofers with 38mm voice coils and a neodymium B&C high-frequency compression driver with a 36mm throat and 64mm coil, delivering precise and consistent performance. The integrated FBT waveguide provides a controlled 100-degree horizontal by 25-degree vertical dispersion. The system operates within a frequency range of 65Hz to 20kHz and includes a Class-D amplifier supplying 600Wrms to the low-frequency drivers and 300Wrms to the high-frequency section. An onboard DSP offers eight equalisation presets. The VERTUS CLA 406.2A cabinet is built from 12mm birch plywood with protective finishes and features integrated mounting points for flexible installation options, including stand mounting and array configurations with CLA 206A units. Designed for both point source and clustered setups, the enclosure supports precise vertical alignment with adjustable angles for optimal coverage.

Enquire now
Professional Active Column Line Array for High-Performance Sound Reinforcement





The VERTUS CLA 406.2A is a professional-grade, active column line array system engineered to meet the demands of high-output audio applications in touring, fixed installation, and corporate environments. Designed for precise sound coverage and modular flexibility, the VERTUS CLA 406.2A delivers consistent, intelligible audio across a wide range of venues. At the heart of the system are four custom 165mm woofers paired with a neodymium B&C compression driver, ensuring accurate low and high-frequency reproduction. Its integrated Class-D bi-amplification, delivering 600Wrms for low frequencies and 300Wrms for high frequencies, supports powerful and efficient performance. The built-in DSP with eight equalisation presets offers adaptability to varied acoustic settings, making the VERTUS CLA 406.2A suitable for both standalone configurations and larger vertical arrays. Constructed from robust birch plywood with protective features and optimised rigging points, it supports a variety of deployment methods including flown arrays and ground setups. The enclosure design, with a 10-degree inclined top and integrated hardware, enables precise vertical dispersion when combined with other CLA models such as the CLA 206A. Whether deployed as part of a larger touring rig or within a fixed installation, the VERTUS CLA 406.2A provides reliable performance, flexibility in system design, and clarity in sound delivery, making it a valuable solution for audio professionals and integrators.

Bi-Amplified System with DSP Control
The VERTUS CLA 406.2A includes an integrated 600W plus 300W Class-D amplifier and an onboard DSP with eight presets, offering both high output and flexible tuning for varied environments.
Custom-Designed Transducers
Equipped with four 165mm woofers and a neodymium compression driver, the system ensures clear vocal projection and detailed frequency response across its operating range.
Precision Dispersion Control
Featuring a large-format waveguide with a dispersion of 100 degrees horizontal by 25 degrees vertical, it provides consistent coverage across wide audience areas.
Versatile Installation Options
The enclosure supports stand mounting, flown arrays, and adjustable vertical coupling with CLA 206A units, enabling flexible configuration for touring and permanent installations.
