FBT

VENTIS 108A

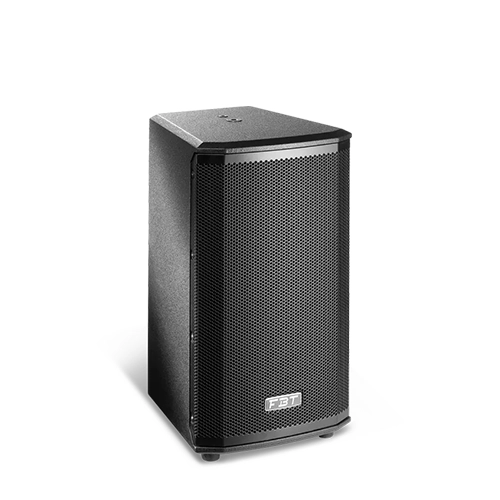

The VENTIS 108A is a professional-grade processed active speaker delivering 700 watts for low frequencies and 200 watts for high frequencies, achieving a maximum sound pressure level of 131 dB. Designed with a bi-amplified, bass-reflex enclosure, it features a custom-engineered 200 millimetre low-frequency woofer with a 50 millimetre voice coil, developed specifically for FBT. High-frequency performance is driven by a B&C compression driver with a 25 millimetre exit throat and a 36 millimetre voice coil. The VENTIS 108A offers a frequency response range from 65 hertz to 20 kilohertz and includes an 80-degree horizontal by 50-degree vertical rotatable horn for consistent directivity. For flexible installation, it is equipped with a top-hat fitting compatible with 35 millimetre poles and includes threading for an optional wall bracket. A built-in pocket handle enhances handling and transport. The VENTIS 108A is engineered to meet the demands of professional audio environments with precision and reliability.

Enquire now
Compact Active Speaker Designed for Precision and Performance in Professional Audio Applications





The VENTIS 108A is a versatile, high-performance active loudspeaker engineered for fixed installations and portable sound reinforcement across a wide range of professional environments. Designed by FBT, the VENTIS 108A combines power, clarity, and reliability, making it well suited for conference venues, corporate AV systems, educational institutions, and small to mid-sized live performance spaces. With a bi-amplified design delivering 700 watts to the low-frequency driver and 200 watts to the high-frequency driver, the speaker achieves a maximum sound pressure level of 131 dB, ensuring articulate sound reproduction at high output levels. The speaker’s integrated DSP provides six presets optimised for various applications, allowing consistent tonal balance and adaptability. Featuring a rotatable constant directivity horn, the VENTIS 108A ensures accurate horizontal and vertical dispersion, which is critical in acoustically challenging spaces. Its compact size and integrated mounting options make it suitable for discreet installation on walls or speaker stands, while the robust construction supports regular use in mobile audio setups. The inclusion of a custom-designed FBT woofer and a B&C compression driver highlights the speaker’s professional-grade audio performance. The VENTIS 108A represents a precise audio solution, offering consistent results where vocal clarity, controlled coverage, and reliable operation are essential.

Bi-Amplified Power Output
Delivers 700 watts to the low frequencies and 200 watts to the highs, ensuring optimal distribution of power and sound clarity across the audio spectrum.
Custom-Engineered Drivers
Incorporates an FBT 200 millimetre woofer and a B&C high-frequency compression driver for accurate, high-quality sound reproduction.
Rotatable Constant Directivity Horn
The 80 by 50 degree dispersion horn can be rotated to suit horizontal or vertical placement, ensuring consistent coverage in various installation scenarios.
Flexible Mounting and Handling Options
Includes a 35 millimetre top-hat fitting, threaded inserts for wall brackets, and an integrated pocket handle for ease of transport and installation.
Enquire nowDownload Datasheet
