Jabra PanaCast 50 video bar system

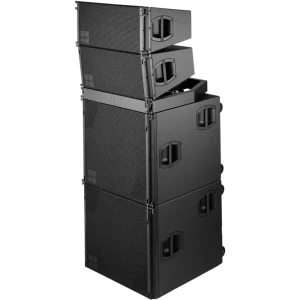

The V8 is a professional-grade 3-way passive loudspeaker system, designed for high-performance audio applications. It features two 10-inch low-frequency neodymium drivers positioned symmetrically around a centrally mounted horn-loaded 8-inch mid-frequency driver and two 1.4-inch exit high-frequency compression drivers, each with a 2.5-inch voice coil. This dipolar configuration ensures effective integration across the crossover frequencies, delivering a consistent 80-degree horizontal dispersion pattern maintained down to 250 Hz.

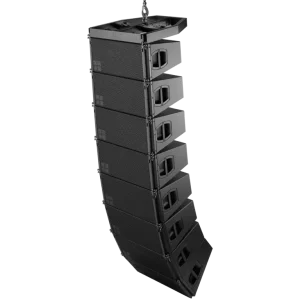

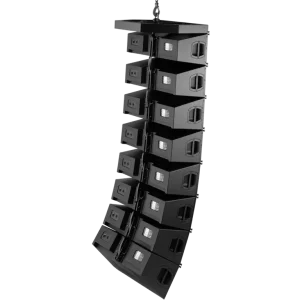

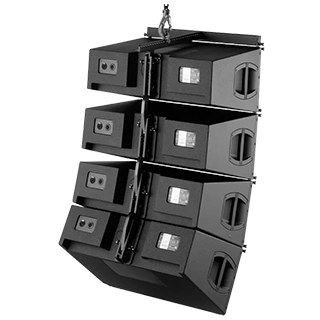

The V8 loudspeaker supports vertical array configurations of up to twenty-four units and can be deployed on its own or integrated with V12 loudspeakers and V-SUB subwoofers. The cabinet is built from robust marine-grade plywood and finished with a durable polyurea coating for resistance against weather and physical impact. A heavy-duty metal grille with acoustically transparent foam provides front protection.
Advanced 3-Way Passive Line Array Loudspeaker
- Equipped with dual 10-inch, one 8-inch, and two 1.4-inch drivers
- Delivers a consistent 80-degree horizontal dispersion pattern
- Maximum sound pressure level reaches up to 142 dB
- Total weight: 34 kg (75 lb)
The V8 loudspeaker is a purpose-built solution for professional audio reinforcement, engineered to deliver consistent directivity and balanced frequency response across a wide range of applications. Its passive 3-way design incorporates advanced driver alignment and robust construction, making it suitable for both standalone use and large-scale flown array systems. With a focus on clarity, durability, and control, the V8 loudspeaker meets the high standards required by touring professionals, rental companies, and system integrators.
