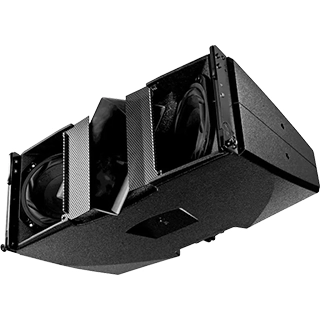

The T10 is a passive two-way loudspeaker designed for professional audio applications, featuring two 6.5-inch drivers arranged in a dipolar configuration and a 1.4-inch high-frequency compression driver with an integrated passive crossover. The T10 functions effectively as both a line array element and a point source loudspeaker with high directivity.

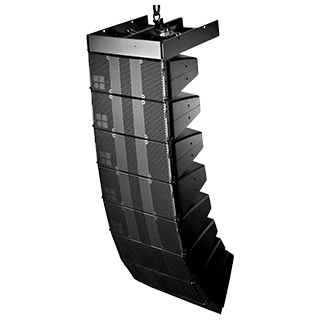

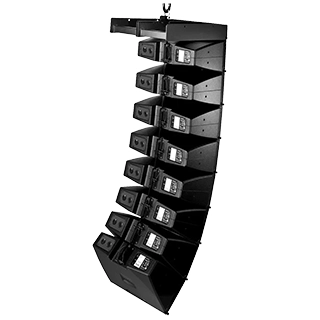

The high-frequency driver is mounted on a waveguide horn that delivers vertical line source behaviour with a 90-degree horizontal dispersion, consistent down to approximately 600 Hz. An acoustic lens positioned in front of the horn extends horizontal dispersion to 105 degrees. Rotating the horn by 90 degrees allows the T10 to operate as a stand-alone point source system, achieving a 90-degree horizontal by 35-degree vertical coverage pattern when positioned vertically.
2 loudspeaker featuring a rotatable horn for use in both point source and line source configurations.
- Driver Configuration: 2 x 6.5-inch LF / 1.4-inch HF
- Dispersion Angles: 90° x 35° or 105°, depending on orientation
- Maximum Sound Pressure Level: 130 dB / 132 dB
- Weight: 11 kilograms / 24 pounds
The T10 loudspeaker is engineered to deliver consistent, high-quality audio performance in both line array and point source configurations. Built with advanced acoustic components and robust construction, it is suited for a range of professional audio environments, including fixed installations and live sound applications. With optimised dispersion control and integrated rigging hardware, the T10 offers reliability and adaptability in demanding usage scenarios. Below are four key features that define the T10 loudspeaker’s design and functionality.
