Luxul

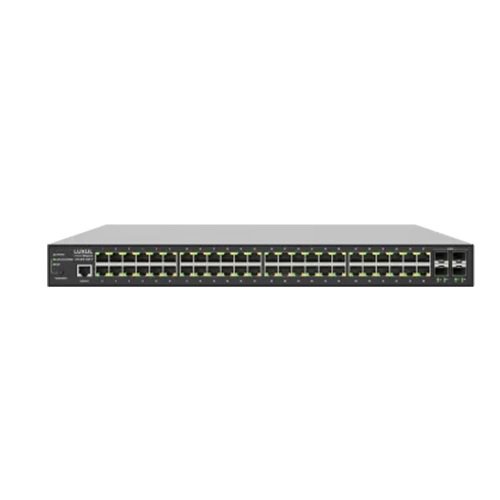

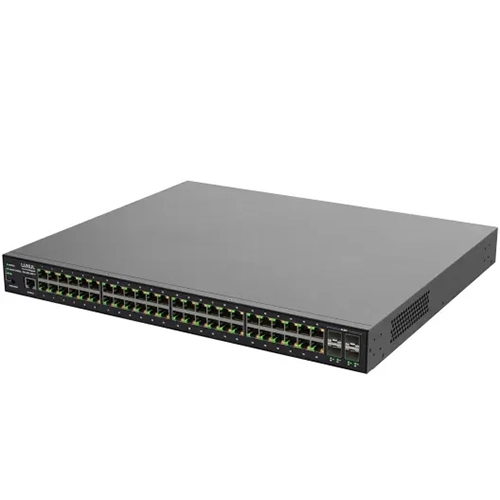

SW-515-48P-F | 48 PoE+ | 4 SFP Ports – 1Gb L2/L3 Managed Switch

The SW 515 48P F is a fully managed Layer 2 and Layer 3 switch featuring 48 Gigabit Ethernet PoE Plus ports and four 1 Gigabit SFP uplink ports. Supporting up to 30 watts per PoE Plus port with a total power budget of 740 watts, the SW 515 48P F efficiently powers compatible 802.3af and 802.3at devices while also delivering high-speed network connectivity. Aggregation of SFP ports enables link speeds of up to 4 Gbps. Designed for professional AV over IP installations, the SW 515 48P F includes a refreshed interface that simplifies configuration, per-port multicast control, and support for IGMP snooping and querying. Additional features include VLAN and QoS support, static routing, ACL filtering, PoE monitoring, and compatibility with Dante and AES67. Housed in a standard 19-inch rack-mount format, the switch also includes variable-speed cooling fans and front-facing ports to support efficient integration in AV networks.

Enquire now
Enterprise-Ready Managed Switch for High-Density AV and Network Applications





The SW 515 48P F is a professional-grade, fully managed Layer 2 and Layer 3 network switch designed to support high-bandwidth applications in AV over IP environments. With 48 Gigabit Ethernet PoE Plus ports and four dedicated 1 Gigabit SFP uplink ports, the SW 515 48P F provides both data and power delivery over a single cable, streamlining network infrastructure for environments requiring robust performance and reliability. Each PoE Plus port supports up to 30 watts, with a total available power budget of 740 watts, enabling the switch to power a wide range of compliant devices such as networked AV endpoints, access points, and IP surveillance systems. The SW 515 48P F is particularly well suited to multi-switch installations, offering dynamic PoE allocation, VLAN support, static routing, and multicast traffic optimisation through IGMP snooping and per-port configuration. Designed for rack-mounted integration in commercial network deployments, it includes a refreshed management interface to simplify setup and ongoing administration. Compatibility with Dante and AES67 further reinforces its relevance for AV professionals deploying real-time audio and video across the network. With a switching capacity of 104 Gbps and support for industry-standard protocols, the SW 515 48P F enables dependable connectivity in education, enterprise, and large-scale AV installations requiring centralised power and control.

High-Capacity PoE Plus Delivery
Supports up to 30 watts per port across 48 ports, with a total 740-watt power budget to efficiently power AV devices, access points, and IP cameras.
Advanced Layer 2 and Layer 3 Functionality
Offers VLAN tagging, static routing, and access control features to support secure, segmented, and scalable enterprise-grade network environments.
Multicast and AV-over-IP Compatibility
Includes IGMP snooping and querying with per-port control, enhancing multicast traffic efficiency for demanding audio and video distribution systems.
Streamlined Management Interface
Features a refreshed, user-friendly interface designed to reduce setup time and simplify network monitoring and administration across large deployments.
Enquire nowDownload Datasheet
