FBT

SUBLINE 112SA

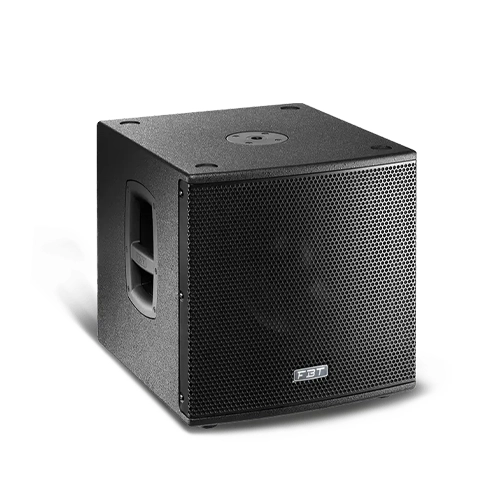

The SUBLINE 112SA is a professional-grade active subwoofer designed for high-output performance, delivering 700W RMS power and a maximum SPL of 130 to 133 dB. Featuring a bass-reflex design, it houses a 320mm high-excursion magnet woofer with a 75mm voice coil, ensuring extended low-frequency response from 40Hz to 140Hz. Powered by a newly developed Class D amplifier by FBT, the subwoofer includes a digital signal processor offering eight presets, two equalisation modes, two low-pass filter options, and support for cardioid configuration. The rear control panel provides stereo XLR inputs and outputs, volume control, selectable EQ presets, an adjustable delay in eight steps from 0.25 to 3.5 metres, a phase reversal switch, and three LED indicators. Constructed from 15mm birch plywood with internal bracing and a scratch-resistant finish, the SUBLINE 112SA is built for durability. Additional features include a 20mm top mount speaker pole socket and two robust aluminium FBT handles for easy handling.

Enquire now
Compact Subwoofer Solution for High-Performance Low-Frequency Reinforcement





The SUBLINE 112SA is a professional active subwoofer engineered for precise low-frequency enhancement in a range of live sound and installed audio environments. Designed and manufactured by FBT, it delivers reliable, high-output performance suitable for both portable PA systems and fixed installations. The SUBLINE 112SA incorporates a bass-reflex enclosure housing a 320mm high-excursion magnet woofer with a 75mm voice coil, offering a frequency response from 40Hz to 140Hz. Powered by a dedicated 700W RMS Class D amplifier developed in-house, the system achieves a maximum sound pressure level of up to 133dB. Integrated DSP functionality provides eight user-selectable presets, dual EQ modes, two low-pass filter options, and cardioid configuration support for enhanced control and adaptability in different acoustic spaces. Connectivity is offered via stereo XLR inputs and outputs, and the control panel includes volume adjustment, delay settings from 0.25 to 3.5 metres, phase reversal, and three LED status indicators. The SUBLINE 112SA is constructed from robust 15mm birch plywood with internal bracing and a durable scratch-resistant finish, making it a dependable choice for touring professionals and audio integrators. A 20mm top-mounted speaker stand socket and two ergonomic aluminium handles ensure convenient deployment. Ideal for corporate events, performance venues, and AV rental operations, the SUBLINE 112SA represents a sound investment in high-quality, scalable low-frequency reinforcement.

High-Efficiency Class D Amplification
The SUBLINE 112SA features a 700W RMS Class D amplifier developed by FBT, delivering powerful and consistent low-frequency output while maintaining high energy efficiency.
Versatile DSP Control
An onboard digital signal processor offers eight presets, dual EQ profiles, two low-pass crossover options, and cardioid mode, allowing users to adapt system performance to diverse acoustic settings.

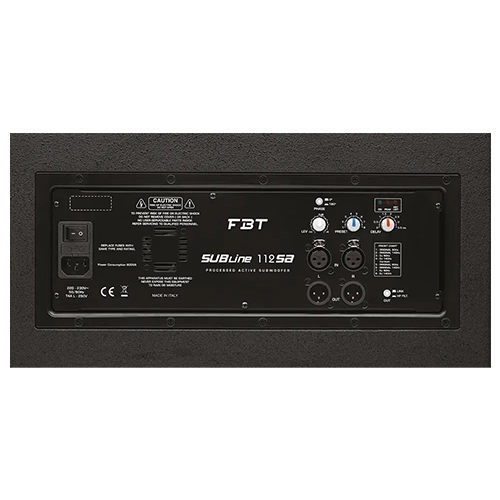

Advanced Connectivity and Configuration
Stereo XLR inputs and outputs, adjustable delay in eight steps, phase reversal, and selectable EQ presets provide comprehensive control for integration into complex audio setups.
Durable Construction for Professional Use
Built from 15mm birch plywood with a scratch-resistant coating and equipped with aluminium handles, the SUBLINE 112SA ensures long-term durability for portable and installed applications.
