OneLINK Bridge for Vaddio HDBaseT Cameras Series

The OneLINK Bridge for Vaddio HDBaseT Cameras Series enables integration of Vaddio HDBaseT cameras and external audio sources into USB-based conferencing systems, offering professional-grade audio and video without the high cost of traditional videoconferencing setups. Designed for compatibility with RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT, this solution provides power, video and control via a single Cat-5e or Cat-6 cable up to 100 metres. The OneLINK Bridge supports uncompressed USB 3.0 video, HDMI, IP streaming and HD-SDI output with resolutions up to 1080p at 60fps. A configurable audio matrix with acoustic echo cancellation ensures high-quality sound performance. This device transforms Vaddio cameras into USB-compatible systems for platforms including Zoom, Google Meet, Microsoft Teams and Webex. Ideal for BYOD environments, it offers browser-based configuration and enhances camera placement flexibility while reducing cable clutter.

Enquire now
USB Integration Solution for Professional Vaddio HDBaseT Camera Installations

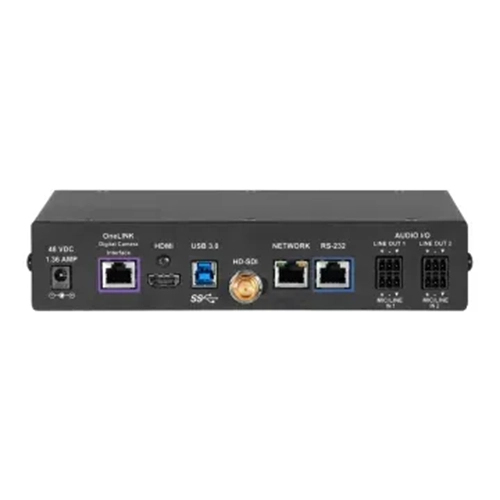

The OneLINK Bridge for Vaddio HDBaseT Cameras is a professional-grade interface device designed to convert Vaddio HDBaseT camera and audio signals into USB outputs suitable for modern conferencing environments. This product is intended to facilitate high-quality video and audio integration for organisations that utilise cloud-based conferencing platforms, bridging the gap between professional AV equipment and USB-based systems. Compatible with a wide range of Vaddio cameras including RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW and DocCAM 20 HDBT, the OneLINK Bridge allows users to extend camera power, control and video over a single Cat-5e or Cat-6 cable up to 100 metres. By consolidating AV infrastructure through HDBaseT technology and enabling USB 3.0 video output, the OneLINK Bridge simplifies deployment in meeting rooms, lecture halls and hybrid communication settings. It also incorporates a configurable audio matrix with acoustic echo cancellation, making it suitable for installations requiring dependable audio clarity. The device supports simultaneous output via USB, HDMI, HD-SDI and IP streaming, offering maximum flexibility for system integrators. The OneLINK Bridge for Vaddio HDBaseT Cameras enhances system efficiency, reduces cabling complexity and provides a reliable connection point between AV hardware and conferencing software such as Microsoft Teams, Zoom and Google Meet.

Extended Camera Connectivity
The OneLINK Bridge delivers power, control and video to supported Vaddio HDBaseT cameras over a single Cat-5e or Cat-6 cable, extending up to 100 metres. This reduces installation complexity and enhances flexibility in camera positioning.
USB 3.0 Media Output
With support for uncompressed USB 3.0 video up to 1080p at 60 frames per second, the device provides high-quality visual output compatible with a wide range of conferencing platforms.
Integrated Audio Bridging with AEC
The integrated audio matrix includes acoustic echo cancellation and allows the use of professional audio systems alongside Vaddio cameras, ensuring consistent and intelligible communication.
Multiple Video Output Options
In addition to USB, the OneLINK Bridge offers simultaneous HDMI, HD-SDI and IP streaming outputs. This enables integration with varied AV systems and supports hybrid workflows.
