High Capacity, High Availability Aggregation

The NPT-2714 is a high capacity, fully redundant aggregation router engineered specifically for service provider networks demanding exceptional performance. The NPT-2714 incorporates an innovative orthogonal architecture, successfully merging the advanced resilience and input/output diversity of modular systems with the simplified operational efficiency characteristic of fixed platforms. This design delivers comprehensive hardware redundancy at an optimized cost.

A primary functional advantage of the NPT-2714 is its capacity for true “Pay As You Grow” scaling. It supports an upgrade pathway from 7.2 Tbps up to 14.4 Tbps non blocking switching capacity, which can be executed entirely in service. This capability ensures significant investment protection, permitting carriers to cost effectively incorporate evolving network technologies. The NPT-2714 features a compact 6RU form factor, accommodating nine I/O card slots to provide extensive interface flexibility, supporting port speeds from 10 Gigabit Ethernet up to 400 Gigabit Ethernet.

The NPT-2714 is expertly suited for high availability multiservice scenarios, including 5G aggregation, large scale broadband backhaul, and critical infrastructure deployment. It supports Coherent Routing (IPoDWDM), facilitating extended reach using 400G ZR+ coherent pluggable optics. Furthermore, the NPT-2714 integrates software driven Media Access Control Security (MACsec) across all network interfaces, thereby guaranteeing robust protection and data integrity.

Enquire now

RIBBON NPT-2714 AGGREGATION ROUTER: HIGH CAPACITY PLATFORM OVERVIEW



The NPT-2714 is specifically engineered as a high capacity, fully redundant IP aggregation router for demanding service provider environments. This platform introduces a refined architectural design that proficiently integrates the input/output diversity of modular systems with the operational simplicity and cost efficiency of fixed platforms. By focusing on true in service scalability, the NPT-2714 ensures a secure and high performing solution for converging network traffic. Deploying the NPT-2714 facilitates the efficient transport of multiservice traffic, meeting stringent network performance requirements.

Optimised Capacity Scaling

The NPT-2714 supports a genuine 'Pay As You Grow' model, allowing for an immediate upgrade from 7.2 Tbps to 14.4 Tbps switching capacity. This process is fully conducted in service, safeguarding network continuity and extending platform utility.

Architectural Redundancy

The router employs an innovative orthogonal design to deliver full data and control plane redundancy at a reduced total cost of ownership. This structure ensures enhanced network availability and resiliency, which is critical for supporting mission vital applications.

Versatile Interface Density

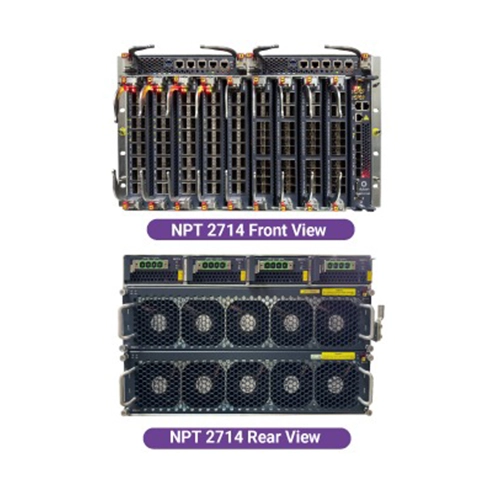

Housed within a compact 6RU chassis, the NPT-2714 offers nine I/O card slots to accommodate diverse network requirements. It natively supports a wide range of speeds from 10 Gigabit Ethernet up to 400 Gigabit Ethernet connections

Integrated Coherent Routing

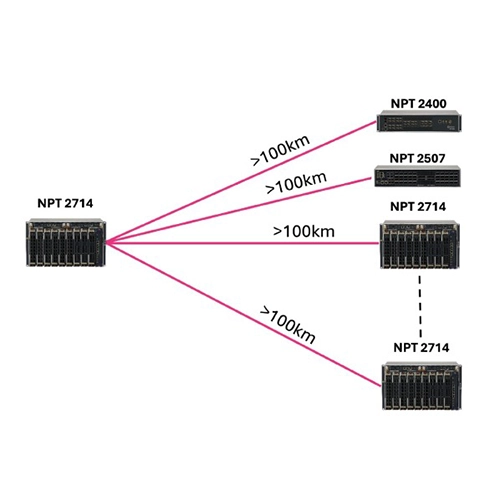

The NPT-2714 facilitates coherent routing, allowing for the consolidation of IP and DWDM functionalities onto a single device. This feature supports high density 400G ZR+ interfaces, extending reach for critical interconnect applications.
