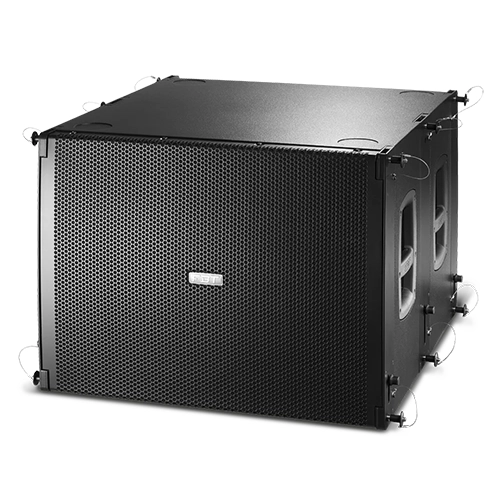

MUSE 118FSA/FSCA

The MUSE 118FSA FSCA is a compact, cardioid-arrayable active subwoofer featuring a hybrid band-pass design. This configuration combines the extended frequency range and responsiveness of a vented system with the acoustic control of a band-pass enclosure, ensuring high output and reduced distortion. Engineered for compatibility with the MUSE 210La system, it supports suspended installation in either forward- or rear-firing orientation, with user-adjustable grille and amplifier placement to maintain visual consistency in cardioid arrays. Its large laminar-flow port design minimises turbulence and power compression, delivering stable performance at high SPL levels. In cardioid setups using one rear-facing and two front-facing units, the MUSE 118FSA FSCA achieves over 15 decibels of rear rejection. The subwoofer incorporates an 18-inch B&C neodymium woofer with a 3-inch voice coil, delivering frequencies from 33Hz to 1Hz. A Class D amplifier with a switch-mode power supply provides 1200 watts RMS output for consistent, reliable operation.

Enquire now
High-performance cardioid subwoofer engineered for array integration in professional sound reinforcement systems





The MUSE 118FSA FSCA is a purpose-built active subwoofer designed for integration into professional audio systems requiring precise low-frequency control and high sound pressure levels. Featuring a hybrid band-pass cardioid configuration, the MUSE 118FSA FSCA provides a balanced combination of acoustic performance, power efficiency, and directional control. This makes it particularly suitable for live sound applications, touring systems, fixed installations, and environments where minimising rearward sound dispersion is critical. Its ability to be flown in either forward- or rear-firing orientation, along with front- or rear-mountable grilles and amplifier modules, allows for optimised cardioid array configurations while maintaining aesthetic consistency across installations. The MUSE 118FSA FSCA incorporates an 18-inch B&C neodymium high-excursion driver and a 3-inch voice coil, powered by a 1200-watt Class D amplifier with a switch-mode power supply for reliable operation across demanding conditions. Operating from 33Hz to 1Hz, it delivers extended low-frequency response with minimal distortion. The subwoofer’s laminar-flow port design reduces air turbulence and power compression, ensuring consistent acoustic output and mechanical reliability. Designed for full compatibility with the MUSE 210La line array system, the MUSE 118FSA FSCA plays a vital role in applications where precise sub-bass control, acoustic coherence, and scalable deployment are essential for high-quality sound reinforcement.

Hybrid Cardioid Band-Pass Design
Combines vented extension with band-pass filtering to deliver high output and controlled dispersion, suitable for directional low-frequency reinforcement.
Suspension-Compatible Configuration
Designed for compatibility with the MUSE 210La, enabling front or rear suspension to support various cardioid array configurations in flown installations.
High-Efficiency Driver Technology
Equipped with a custom 18-inch B&C neodymium woofer featuring a 3-inch voice coil for extended frequency response and high sound pressure levels.
Optimised Laminar Port Structure
Large surface area laminar-flow port minimises turbulence and compression, maintaining consistent acoustic performance under continuous load.
