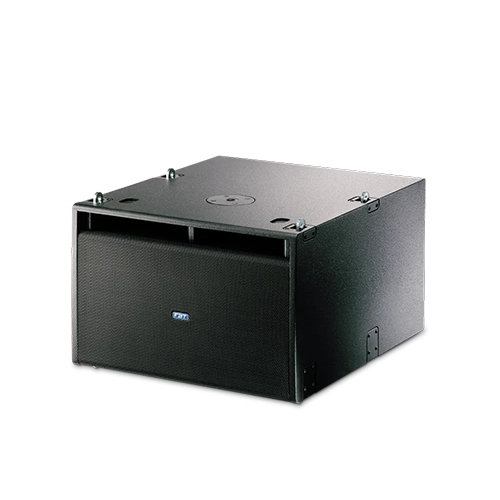

MITUS 212FSA

The MITUS 212FSA is a processed, flyable active subwoofer specifically designed to complement the MITUS 206LA line array system. Engineered with a compact vented band-pass design, it features two 320 mm (12 inch) B&C high-excursion subwoofers equipped with neodymium magnets and 75 mm (3 inch) voice coils. Delivering a frequency response from 45 Hz to 120 Hz, the MITUS 212FSA is powered by a 1200-watt RMS Class D amplifier supported by a switch mode power supply. Integrated DSP offers eight preset configurations, including cardioid and infra settings, along with delay control. The rear panel includes XLR input and link, volume, preset selection, delay adjustment, phase control from 0 to 180 degrees, and a ground-lift switch. Housed in a robust 15 mm birch plywood cabinet with a black scratch-resistant finish, the MITUS 212FSA can be flown or ground stacked and includes an M20 top mount socket for flexible deployment.

Enquire now
High-performance flyable subwoofer optimised for line array integration





The MITUS 212FSA is a professional-grade processed active subwoofer engineered for high-output low-frequency reinforcement in flown or ground-stacked configurations. Developed to integrate seamlessly with the MITUS 206LA line array, the MITUS 212FSA features a compact vented band-pass design that ensures efficient bass response within a focused frequency range. Equipped with two 320 mm B&C neodymium magnet subwoofers and 75 mm voice coils, it delivers consistent low-frequency performance across a response range of 45 Hz to 120 Hz. The system is powered by a 1200-watt RMS Class D amplifier, paired with a switch mode power supply and onboard DSP for reliable operation under demanding conditions. The DSP includes eight preset configurations, including cardioid and infra modes, allowing for system flexibility across various live sound, touring, and fixed installation applications. Control and signal options include XLR input and link, volume, delay, phase adjustment, and a ground-lift function for noise management. Housed in a durable 15 mm birch plywood enclosure finished with black scratch-resistant paint, the MITUS 212FSA also features an M20 top mount socket, enabling pole-mounted configurations when required. Its robust design and acoustic performance make the MITUS 212FSA a valuable low-frequency extension solution for professional audio deployments requiring compact format and flyable compatibility.

Dual 12-inch High-Excursion Drivers
The MITUS 212FSA incorporates two B&C 320 mm subwoofers with neodymium magnets and 75 mm voice coils, providing high-output, low-distortion bass performance for demanding environments.
Advanced DSP with Multiple Presets
An integrated digital signal processor offers eight selectable presets, including cardioid and infra configurations, enhancing system versatility and on-site adaptability.
1200-watt RMS Class D Amplifier
The built-in amplifier delivers consistent power output and thermal efficiency, ensuring stable operation across extended usage in professional sound reinforcement setups.
Flyable and Ground Stack-Compatible Design
Designed to match the MITUS 206LA in width and rigging configuration, the MITUS 212FSA supports both flown and ground-stacked deployment, enabling flexible integration in touring and fixed systems.
Enquire nowDownload Datasheet
