FBT

MITUS 206LA

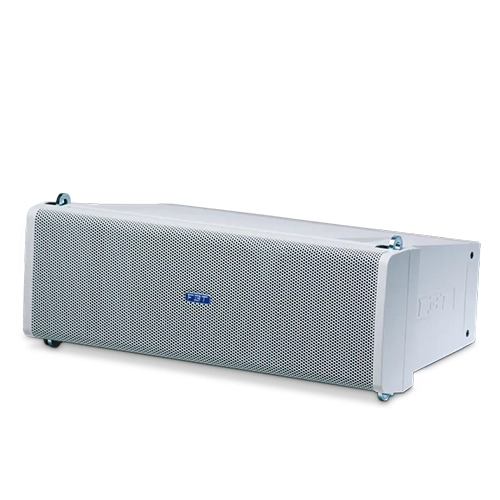

The MITUS 206LA is a compact, bi-amplified vertical array loudspeaker designed for accurate sound reinforcement in professional applications. Featuring a bass-reflex enclosure, it houses two 6.5-inch B&C neodymium woofers with 1.7-inch voice coils and a 1.4-inch B&C neodymium compression driver with a 2.5-inch coil. Delivering 600 watts RMS to the low frequencies and 300 watts RMS to the high frequencies via integrated Class D amplifiers with a switch-mode power supply, the MITUS 206LA offers a frequency response from 68 hertz to 20 kilohertz. An onboard DSP provides eight presets and adjustable high-frequency control for amplitude shading. The unit includes a control panel with XLR input and link, volume, preset selection, high-pass filter, and ground lift. With a 100-degree horizontal waveguide, it supports both pole-mounted and array configurations using integrated rigging hardware. Constructed from durable polypropylene and weighing only 14 kilograms, the MITUS 206LA suits indoor and sheltered outdoor installations.

Enquire now
MITUS 206LA: High-Performance Compact Line Array for Precise Sound Reinforcement





The MITUS 206LA is a professional-grade compact vertical line array speaker engineered for accurate, consistent audio delivery in demanding environments. Designed to meet the needs of system integrators, rental companies, and installation professionals, the MITUS 206LA provides a reliable and scalable solution for both mobile and fixed sound reinforcement setups. It combines advanced electroacoustic design with a high-powered internal amplification system, making it suitable for a wide range of medium-scale applications including theatres, houses of worship, corporate venues, and outdoor events where environmental exposure is limited. The system incorporates two 6.5-inch B&C neodymium woofers and a 1.4-inch B&C neodymium driver, delivering a precise frequency response from 68 hertz to 20 kilohertz. With onboard DSP control offering eight preconfigured settings, the MITUS 206LA ensures optimal performance across various deployment scenarios. The speaker’s polypropylene enclosure is both lightweight and durable, supporting flexible rigging with adjustable angles for accurate coverage. With a horizontal dispersion of 100 degrees and vertical coupling capabilities, the MITUS 206LA is designed to perform either as a standalone solution or as part of a larger array. Its technical precision and versatile configuration options make the MITUS 206LA a valuable component in professional sound systems where clarity, reliability, and control are essential.

Bi-Amplified Class D Power Output
The MITUS 206LA features a dedicated 600 watt RMS amplifier for low frequencies and 300 watt RMS for high frequencies, enabling dynamic and balanced output with minimal distortion.
Integrated DSP with Eight Presets
An onboard digital signal processor provides eight selectable presets and a high-frequency level control, allowing fine-tuned system adjustment for different acoustic environments.

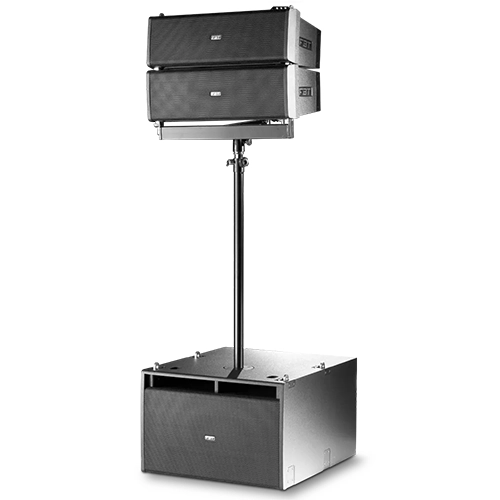

Versatile Rigging and Mounting Options

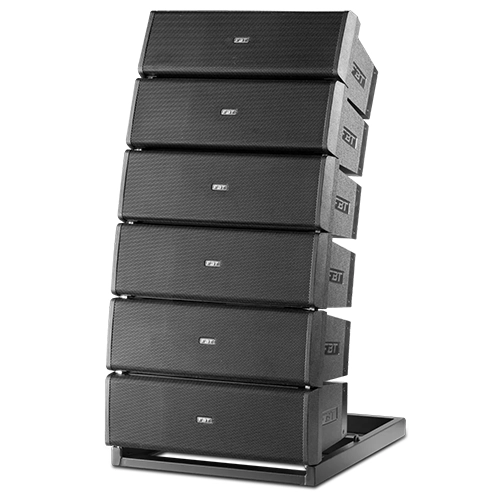

Built-in rigging hardware supports array configurations with angle adjustments from zero to ten degrees in two-degree increments, offering flexibility for flown or ground-stacked setups.
Durable and Lightweight Construction
The gas-injected polypropylene enclosure provides high impact resistance while keeping the unit’s weight to just 14 kilograms, ideal for mobile applications and easy handling during installation.
Enquire nowDownload Datasheet
