FBT

MITUS 152A

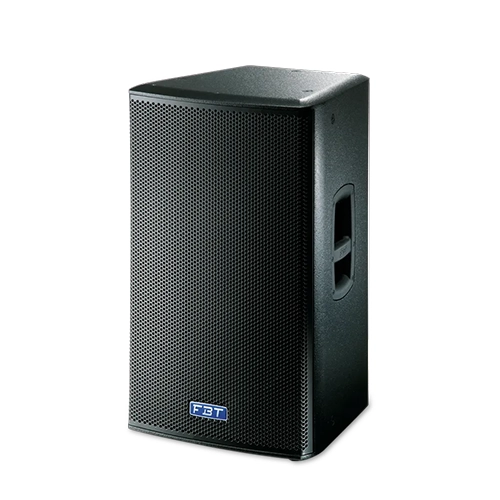

The MITUS 152A is a high-performance processed active speaker delivering 1100 watts RMS to the low-frequency section and 250 watts RMS to the high-frequency driver, achieving a maximum SPL of 136dB. This bi-amplified, two-way speaker features a bass-reflex cabinet design and integrates a 380mm B&C woofer with a 75mm voice coil, alongside a B&C high-frequency driver with a 50mm exit and 64mm voice coil. Designed for both portable and fixed installations, it offers a frequency range from 45Hz to 20kHz and includes a rotatable 60 by 40 degree HF horn for optimised dispersion. Housed in a birch plywood enclosure with a durable black paint finish, the MITUS 152A includes a DSP with six EQ presets, a Class D amplifier for LF, Class G for HF, and a switch mode power supply. The rear panel provides XLR input and link, volume control, preset selection, high-pass filter and ground lift options, with M10 fly points and ergonomic aluminium handles for easy handling.

Enquire now

High-Power Active Speaker System for Professional Sound Applications



The MITUS 152A is a professional-grade processed active speaker designed to meet the demands of live sound reinforcement and fixed audio installations. Engineered for precise sound reproduction and consistent performance, the MITUS 152A features a bi-amplified two-way system, delivering 1100 watts RMS to the low-frequency driver and 250 watts RMS to the high-frequency section. Its 15-inch B&C neodymium woofer and 2-inch exit HF driver ensure accurate frequency coverage from 45 hertz to 20 kilohertz, supporting a wide range of musical and vocal content. Built around a bass-reflex cabinet design, the MITUS 152A incorporates a rotatable 60 by 40 degree high-frequency horn, offering flexible dispersion for various venue layouts. Housed in a durable birch plywood enclosure, it is well-suited for both mobile and permanent setups, including theatres, houses of worship, conference halls, and outdoor events. The integrated DSP provides six EQ presets, allowing sound technicians to adapt the response curve based on specific acoustic environments. With its reliable Class D and Class G amplification, switch mode power supply, and comprehensive rear control panel, the MITUS 152A offers consistency, scalability, and operational efficiency. Combining robust build quality with advanced performance characteristics, the MITUS 152A is a dependable solution for professional audio professionals requiring clarity, power, and adaptability in demanding environments.

Bi-Amplified Power Configuration

The MITUS 152A delivers 1100 watts RMS to the low-frequency driver and 250 watts RMS to the high-frequency driver, ensuring balanced and powerful output across the full audio spectrum.

Rotatable HF Horn for Flexible Coverage

Its 60 by 40 degree rotatable high-frequency horn enables optimal sound dispersion, allowing users to adjust coverage patterns to suit different installation environments.

Integrated DSP with EQ Presets

With six selectable EQ presets, the MITUS 152A allows users to optimise the speaker's frequency response for a variety of applications, ensuring audio clarity and precision.

Durable Enclosure and Installation Options

Constructed from birch plywood with a robust paint finish, the MITUS 152A includes M10 fly points and aluminium handles, supporting both fixed installations and mobile use.
Enquire nowDownload Datasheet
