FBT

J MAXX 114A

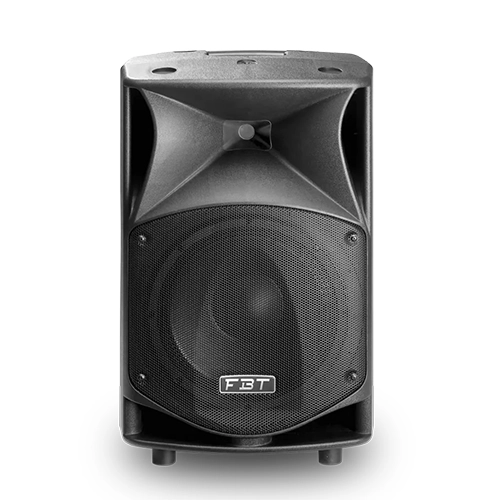

The J MAXX 114A is a high-performance two-way active loudspeaker engineered for professional audio applications. Featuring a bi-amplified bass reflex cabinet, it delivers 700 watts RMS to the low-frequency 14-inch woofer with a 2.5-inch voice coil, and 200 watts RMS to the high-frequency compression driver with a 1-inch exit and 1.4-inch voice coil. The system offers a frequency response ranging from 45 hertz to 20 kilohertz and achieves a maximum sound pressure level of 132 decibels. At only 14 kilograms, the J MAXX 114A is designed for ease of transport and flexible installation. The control panel includes XLR input and link, volume control, selectable EQ presets, high-pass filter, and ground lift switch. The unit incorporates Class D amplification with a switch mode power supply, DSP with four EQ modes, a constant directivity horn at 90 degrees horizontal by 60 degrees vertical, multiple monitor angles, a top-hat speaker stand socket, M10 rigging points, and wall bracket mounting options.

Enquire now
Professional-Grade Loudspeaker for Versatile Sound Reinforcement





The J MAXX 114A is a bi-amplified, two-way active loudspeaker developed to meet the demanding requirements of professional audio environments. Designed with a clear focus on performance and reliability, the J MAXX 114A combines a 14-inch low-frequency woofer and a 1-inch exit high-frequency compression driver within a durable yet lightweight enclosure, delivering powerful, accurate sound reproduction across a wide frequency range. Offering a frequency response from 45 hertz to 20 kilohertz and capable of reaching a maximum sound pressure level of 132 decibels, the J MAXX 114A is well suited for applications such as live sound reinforcement, portable PA systems, installations in multipurpose venues, and use as a stage monitor. The loudspeaker integrates Class D amplification and advanced DSP control with four EQ presets, providing users with adaptable configuration options to suit different acoustic environments. Connectivity and control are facilitated via a rear panel featuring balanced XLR input and link output, EQ selection, volume adjustment, high-pass filtering, and a ground lift switch. Its compact form factor, weighing only 14 kilograms, along with multiple mounting and angling options including a 35 millimetre pole socket, M10 rigging points, and wall bracket mount compatibility, ensure installation flexibility. The J MAXX 114A stands as a dependable solution for audio professionals seeking precision, output efficiency, and consistent performance in a wide variety of operational settings.

High-Efficiency Bi-Amplified Design
The J MAXX 114A utilises separate Class D amplifiers for low and high frequencies, delivering 700 watts and 200 watts RMS respectively. This ensures consistent power distribution and reliable performance in demanding audio environments.
Advanced DSP with Four EQ Presets
Integrated digital signal processing provides four selectable EQ settings, allowing sound engineers to quickly adapt output characteristics to suit different venues or usage scenarios.
Versatile Mounting and Monitor Angles
Equipped with M10 suspension points, a standard speaker stand socket, and wall mount flange, the J MAXX 114A supports flexible deployment. It also offers three stage monitor angles for varied live monitoring applications.
Compact and Lightweight Construction
Weighing only 14 kilograms, the J MAXX 114A is easy to transport and install, making it particularly beneficial for mobile setups and frequent reconfigurations without compromising structural durability.
Enquire nowDownload Datasheet
