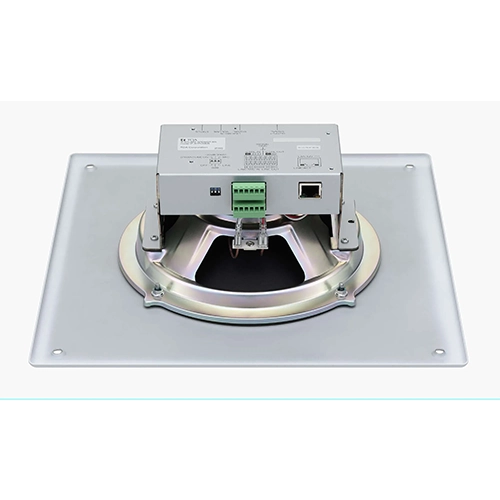

The IP A1PC580S is a surface mount speaker designed for IP-based communication systems, offering Power over Ethernet functionality and an integrated 8 watt amplifier. It includes onboard memory capable of storing up to 20 audio files, enabling pre-recorded message playback. The speaker supports the SIP protocol, allowing integration with a wide range of VoIP platforms. With 20 multicast ports, the IP A1PC580S facilitates group paging across multiple zones. It is also compatible with Video Management Systems via the ONVIF audio backchannel, supporting audio reception from surveillance environments. Remote device control and broader system integration can be managed through an HTTP-based API or by using local contact inputs. Engineered for professional environments requiring reliable audio distribution, the IP A1PC580S is suitable for deployment in commercial, industrial, or institutional settings where network-based public address solutions are essential.
- 20cm (8”) dual cone-type speaker with metal construction
- Receive SIP audio, ONVIF and Multicast
- Local broadcast using internal audio files
- 1 audio input (LINE/MIC selectable, phantom power On/Off)
- 8W built-in amplifier, 1 LINE audio output
- 2 control inputs and 1 control output
- HTTP commands (receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- Playback programs (Repeat, Weekly Timer)
- PoE powered
The IP A1PC580S is a surface mount IP speaker engineered for professional audio communication across networked environments. Designed for compatibility with modern IP infrastructures, the IP A1PC580S supports Power over Ethernet and integrates an 8 watt amplifier, providing reliable sound output for voice announcements and pre-recorded audio playback. This speaker is equipped with internal memory capable of storing up to 20 audio files, enabling scheduled or event-triggered messaging without reliance on external sources. Supporting the SIP protocol, the IP A1PC580S allows integration with VoIP telephone systems, while its 20 multicast ports enable effective group paging and zone-based broadcasting across large facilities. The speaker also supports ONVIF audio backchannel, allowing it to receive audio streams from Video Management Systems for integration into broader surveillance or emergency communication workflows. Device control and monitoring are accessible via remote HTTP API or through local input connections, providing flexibility for both centralised and on-site management. The IP A1PC580S is particularly suited for applications in commercial buildings, educational institutions, industrial complexes, and public spaces where scalable, network-based audio delivery is required. Its compatibility with standard network protocols ensures long-term system adaptability and ease of integration within existing IT and security ecosystems. As part of a unified audio-over-IP solution, the IP A1PC580S enhances communication reliability, operational efficiency, and situational responsiveness.
