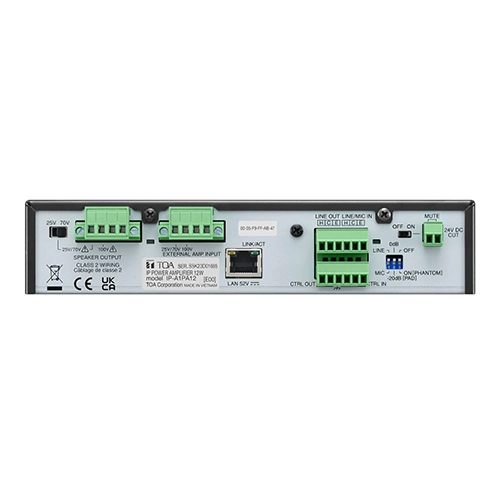

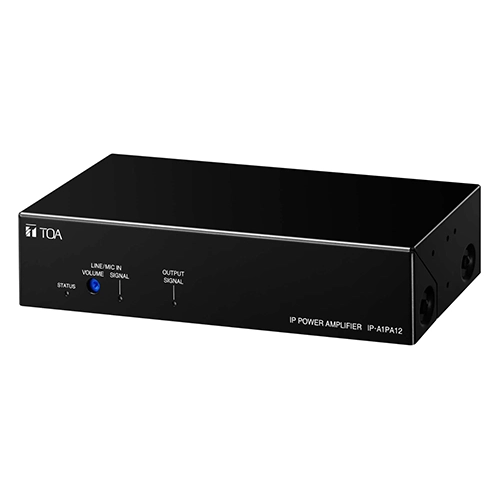

The IP-A1PA12 is a compact 12 W amplifier designed for network-based audio distribution in professional environments. Supporting 25 V, 70 V and 100 V speaker line outputs, the IP-A1PA12 efficiently powers high impedance speakers across varied installations. It integrates smoothly with IP camera systems via ONVIF, enables SIP-based paging from IP phone systems and supports multicast streaming for group broadcasts. The unit allows flexible audio playback, offering storage for up to 20 WAV or MP3 files with a total capacity of 80 MB. These files can be activated through control inputs or HTTP commands. An external amplifier input allows easy switching between the internal amplifier and an external PA system. The IP-A1PA12 also features one selectable LINE or MIC input with optional phantom power, two control inputs, one control output, a mute input and supports playback scheduling through repeat or weekly timers. It is powered via PoE Plus, simplifying installation in networked environments.
The IP-A1PA12 is a compact 12-watt network power amplifier engineered to support IP audio distribution in commercial and industrial installations. Designed for integration within IP-based audio and communication systems, the IP-A1PA12 delivers reliable amplification for high impedance loudspeaker lines with 25-volt, 70-volt, and 100-volt outputs. It is well-suited for public address, security paging, and broadcast applications across environments such as office buildings, transport hubs, retail centres, and educational institutions. The IP-A1PA12 facilitates audio playback and transmission via multiple network protocols, including SIP for IP phone systems, ONVIF for IP surveillance integration, and multicast streaming for group audio distribution. It supports the playback of up to 20 locally stored audio files in WAV or MP3 format, controllable via remote API commands or physical control inputs. With built-in scheduling and programme options, it allows for automated or manual audio broadcasts based on operational needs. The amplifier can also interface with an external PA amplifier, allowing users to switch speaker output between the internal amplifier and an external source. Powered via PoE Plus, the IP-A1PA12 simplifies installation by reducing the need for separate power infrastructure. Through its multi-protocol compatibility, flexible control options, and professional-grade audio support, the IP-A1PA12 enhances communication infrastructure in IP audio environments.
