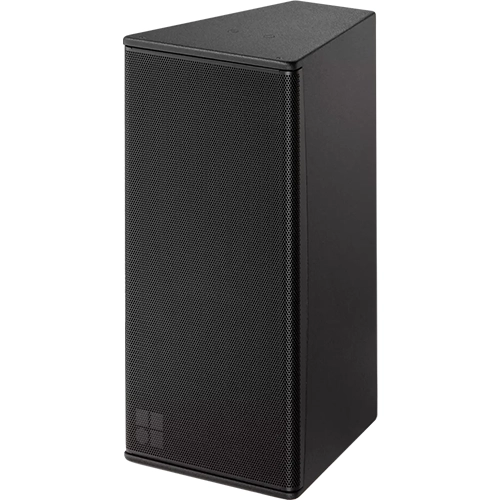

The 24S loudspeaker is a high-performance, full-range passive system engineered for permanent installation across a wide scope of professional applications. This two-way enclosure integrates dual 12-inch drivers arranged in a dipolar configuration, delivering controlled directivity to approximately 500 Hz within the dipole plane. A 1.4-inch exit compression driver is mounted to a large constant directivity horn, which can be rotated 90 degrees to support both vertical and horizontal orientation. The 24S loudspeaker’s bass-reflex design, combined with specially engineered ports and substantial internal volume, enhances low-frequency performance. Offering a frequency response from 55 Hz to 18 kHz, it is suitable for standalone use or can be paired with d and b subwoofers. The robust cabinet is built from marine-grade plywood and finished with an impact-resistant coating, while a durable metal grille protects the front. The 24S loudspeaker meets DIN 18032-3 impact standards and is available in a weather-resistant IP55-rated variant with a fixed cable for outdoor use.
Installation specific high performance full range 2-way loudspeaker
- Components 2 x 12″/1.4″
- Dispersion 75° x 45°
- SPLmax 138 dB
- Weight 33 kg / 73 lb
The 24S loudspeaker is a high-specification, full-range passive speaker system developed by d&b audiotechnik for fixed installation in professional environments. Designed to deliver consistent audio performance across a wide range of venues, the 24S loudspeaker incorporates a two-way configuration with dual 12-inch drivers and a 1.4-inch compression driver, mounted on a rotatable constant directivity horn. This layout supports precise dispersion control and ensures intelligible audio reproduction, even in acoustically challenging spaces. Engineered for venues such as theatres, concert halls, houses of worship, sports arenas, and multipurpose auditoriums, the 24S loudspeaker is well suited to both voice and music reinforcement. Its robust bass-reflex enclosure, combined with optimised porting and substantial cabinet volume, enables extended low-frequency response, reducing the need for additional subwoofers in some applications. The 24S loudspeaker operates within a frequency range of 55 Hz to 18 kHz and is capable of being deployed as a standalone solution or integrated into larger distributed sound systems. Constructed from marine-grade plywood and finished with a hard-wearing paint coating, the enclosure is built to meet the demands of high-use professional installations. Available in a Weather Resistant version with an IP55 rating, the 24S loudspeaker can also be deployed in outdoor or semi-exposed environments, providing reliable performance under varying environmental conditions. With both ground stack and flown configuration options, it offers flexible integration within a wide variety of permanent sound reinforcement setups.
