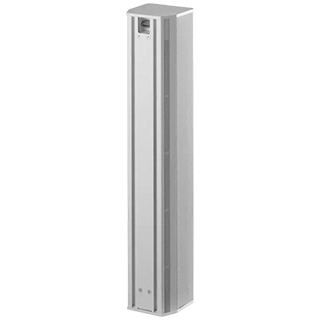

The 16C Column Loudspeaker is a compact 2-way passive system and the smallest model in the xC-Series, purpose-built for fixed installation applications. It incorporates four 4-inch neodymium drivers and a 0.75-inch compression driver fitted to a constant directivity (CD) horn. This high-frequency horn delivers a nominal dispersion of 90° horizontally and 40° vertically, ensuring uniform sound coverage across the target area.
The low-mid drivers are configured in a cardioid arrangement, with sound directed forward through waveguide elements and reduced at the rear via acoustically damped ports. This setup creates a stable 90° horizontal dispersion and achieves up to 18 dB attenuation behind the speaker. As a result, the 16C Column Loudspeaker minimises rear reflections and offers consistent sound pressure levels across the space, which also helps to increase gain before feedback when used with open microphones.
Technical Specifications of the 24C-E Passive Extender
- Components 4 x 4″/0.75″
- Dispersion 90° x 40°
- SPLmax 122 dB
- Weight 5 kg / 11 lb
The 16C Column Loudspeaker is a compact, passive 2-way system designed for precise sound control in permanent installation settings. As the smallest model in the d&b audiotechnik xC-Series, it combines four 4″ neodymium drivers with a 0.75″ compression driver on a CD horn to deliver balanced, directional coverage. Its unique cardioid design minimises unwanted rear energy by up to 18 dB, ensuring even sound distribution and improved gain before feedback. With robust construction, flexible mounting options, and a discreet visual profile, the 16C is ideal for acoustically challenging spaces where speech intelligibility and architectural integration are essential.
The 16C Column Loudspeaker is available in black or white as standard and can also be customised in any RAL colour through the Special Colour (SC) option. This flexibility makes it ideal for projects that demand both precise acoustic performance and seamless architectural integration. As the best loudspeaker distributor in d&b, we provide expert support to ensure the 16C is perfectly matched to your installation needs.
